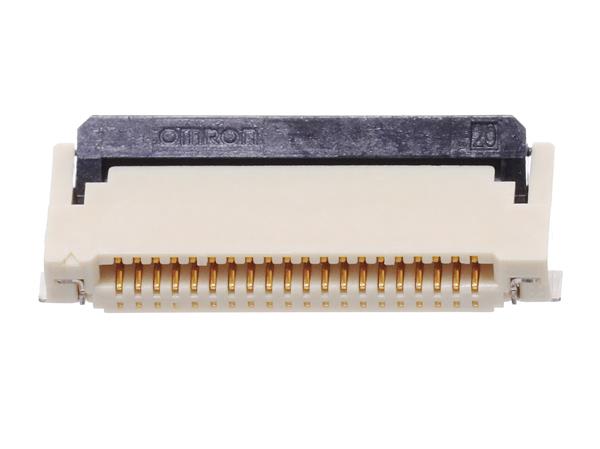

Omron Electronics XF2M-2015-1A Board Mount .5mm Rotary BackLock SMT Dual 20P Adhesv
ModelXF2M-2015-1A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Pitch: 0.5 mm
Unit Weight: 401.188 mg
Housing Color: Natural
Current Rating: 500 mA
Mounting Angle: Right Angle
Voltage Rating: 50 V
Contact Plating: Gold
Contact Location: Dual Contact
Contact Material: Spring Copper Alloy / Nickel Substrate
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: SMD/SMT
Number of Positions: 20 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
