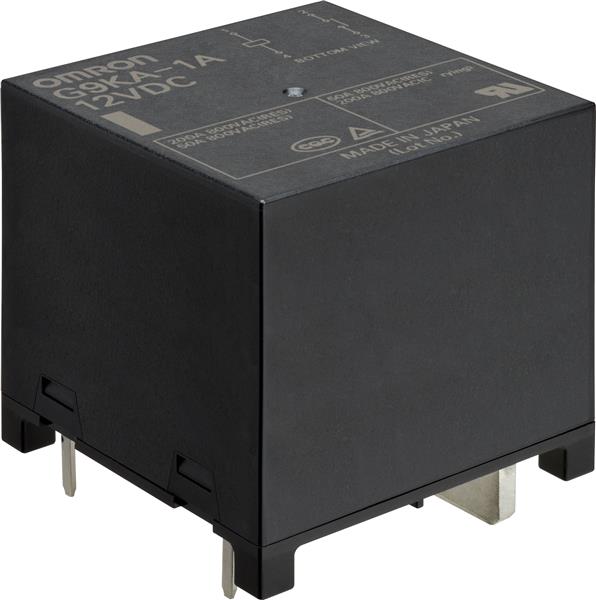

Omron Electronics G9KA-1A DC24 High Power 800VAC/200A AC Relay High Power 24 Vdc
ModelG9KA-1A DC24
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 51 mm
Height: 47.2 mm
Length: 51 mm
Coil Type: Non-Latching
Coil Current: 208 mA
Coil Voltage: 24 VDC
Contact Rating: 200 A
Mounting Style: PCB Mount
Coil Resistance: 115.2 Ohms
Coil Termination: PC Pin
Contact Material: Silver
Power Consumption: 1.012 W
Switching Voltage: 800 VAC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Termination: Quick Connect
Contact Current Rating: 200 A
Maximum Switching Current: 200 A
