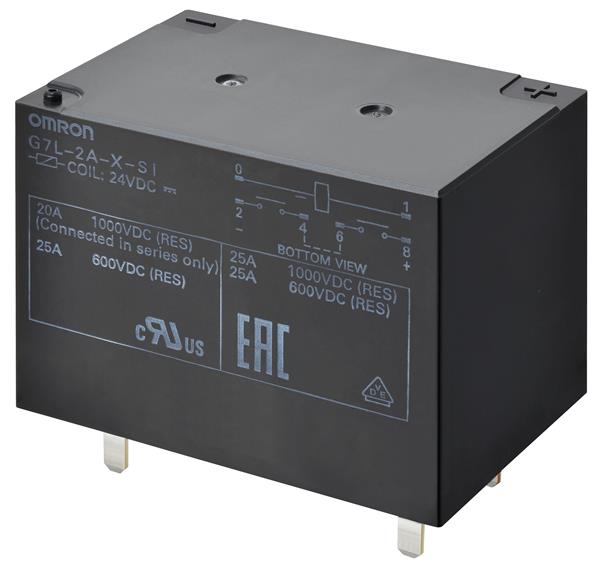

Omron Electronics G7L-2A-X-SI DC24 Compact Power Relay Low CR 1000VDC PCB Relay DC24
ModelG7L-2A-X-SI DC24
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 35.5 mm
Height: 41 mm
Length: 52.5 mm
Coil Type: Non-Latching
Coil Current: 96 mA
Coil Voltage: 24 VDC
Contact Rating: 30 A
Mounting Style: PCB Mount
Coil Resistance: 250 Ohms
Contact Material: Silver
Power Consumption: 600 mW
Switching Voltage: 1 kVDC
Relay Contact Form: 2 Form A (DPST-NO)
Contact Termination: Solder Pin
Contact Current Rating: 30 A
Maximum Switching Current: 30 A
