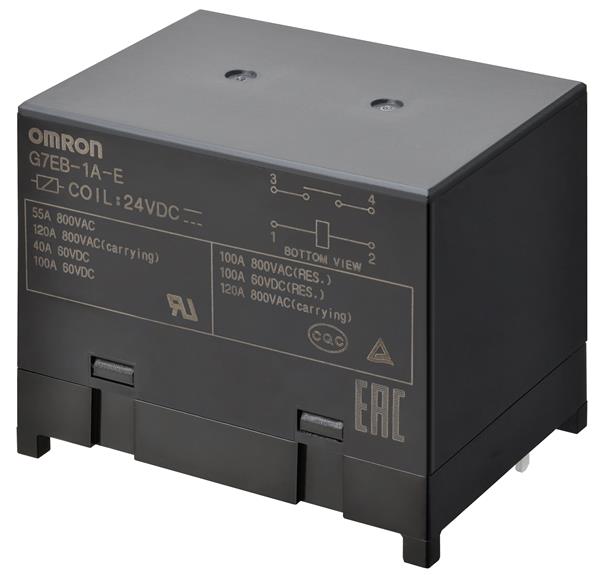

Omron Electronics G7EB-1A-E DC24 High Power 120A, 800VAC High Power PCB Relay, 24V Standard Terminal
ModelG7EB-1A-E DC24
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 37 mm
Height: 40.5 mm
Length: 50.5 mm
Coil Type: Non-Latching
Coil Current: 116.5 mA
Coil Voltage: 24 VDC
Contact Rating: 120 A
Mounting Style: PCB Mount
Coil Resistance: 206 Ohms
Coil Termination: PC Pin
Contact Material: Silver
Power Consumption: 2.8 W
Switching Voltage: 800 VAC, 60 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Termination: Solder Lug
Contact Current Rating: 120 A
Maximum Switching Current: 100 A
