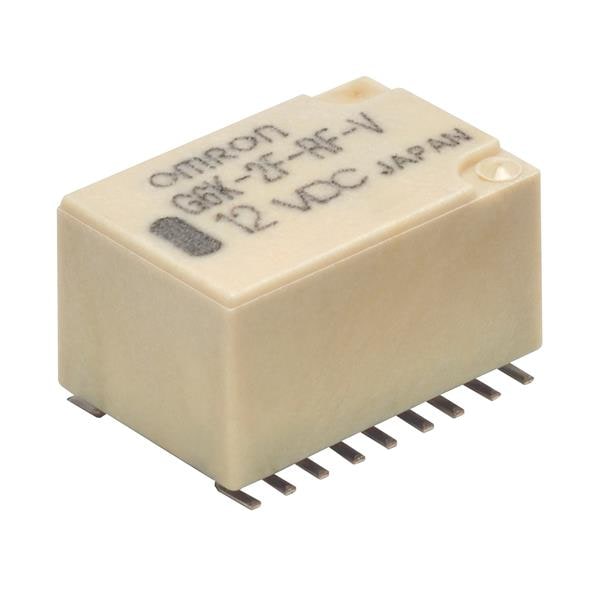

Omron Electronics G6K-2F-RF-V DC5 High Frequency Relays Surface Mount Relay
ModelG6K-2F-RF-V DC5
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
VSWR: 5 dB
Coil Type: Non-Latching
Frequency: 8 GHz
Isolation: 15 dB
Unit Weight: 5.512 g
Coil Current: 21.1 mA
Coil Voltage: 5 VDC
Contact Form: DPDT (2 Form C)
Contact Rating: 1 A
Insertion Loss: 3 dB
Coil Resistance: 237 Ohms
Power Consumption: 100 mW
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Termination: SMD/SMT
Contact Current Rating: 1 A
Maximum Switching Current: 1 A
