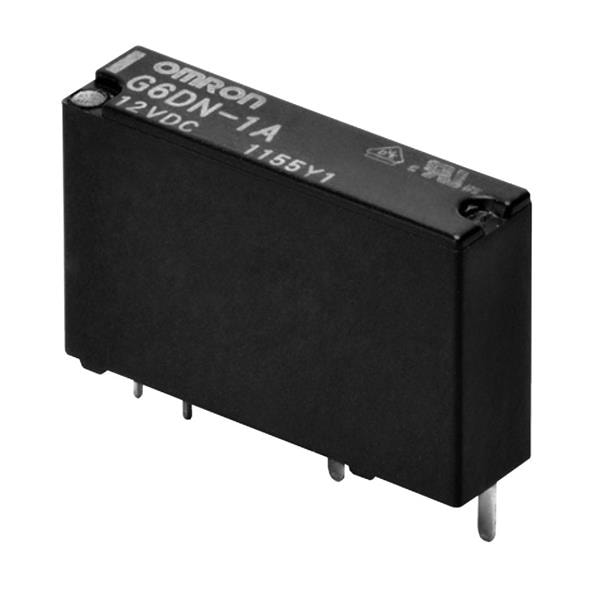

Omron Electronics G6DN-1A-SL DC12 Miniature Slim PCB Power Relay SPST 5A 50Kops
ModelG6DN-1A-SL DC12
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 5 mm
Height: 12.5 mm
Length: 20 mm
Coil Type: Non-Latching
Compliance: EN61010-1, EN61010-2-201
Unit Weight: 3 g
Coil Current: 9.2 mA
Coil Voltage: 12 VDC
Mounting Style: Through Hole
Coil Resistance: 1.309 kOhms
Coil Termination: Solder Pin
Contact Material: Silver Alloy (Ag)
Power Consumption: 110 mW
Switching Voltage: 250 VAC, 30 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Termination: Solder Pin
Contact Current Rating: 5 A
Maximum Switching Current: 5 A
