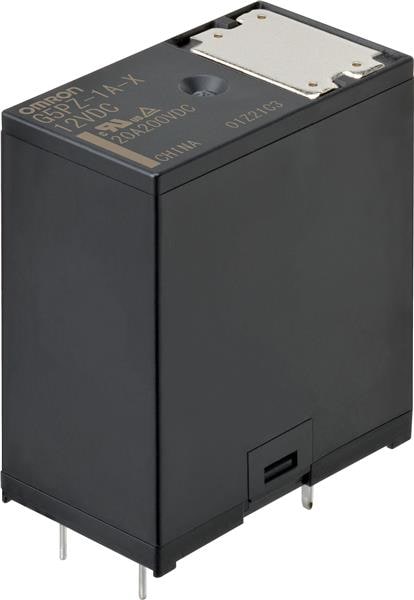

Omron Electronics G5PZ-1A-X DC12 Compact Power Relay High VDC Power Relay
ModelG5PZ-1A-X DC12
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 15.2 mm
Height: 29.5 mm
Length: 26.4 mm
Coil Current: 44.1 mA
Coil Voltage: 12 VDC
Contact Rating: 20 A
Mounting Style: PCB Mount
Coil Resistance: 272 Ohms
Contact Material: Silver
Power Consumption: 530 mW
Switching Voltage: 277 VAC, 200 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Termination: Solder Pin
Contact Current Rating: 16 A
Maximum Switching Current: 16 A
