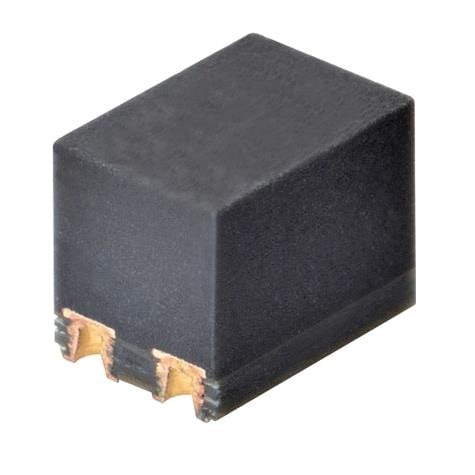

Omron Electronics G3VM-61QR(TR05) Solid State Relays SPST-NO 60V 400mA High Switch Capacity

Width: 1.45 mm (0.057 in)

Height: 1.65 mm (0.065 in)

Length: 2 mm (0.079 in)

Output Type: MOSFET

Unit Weight: 10 mg

Contact Form: SPST (1 Form A)

Input Current: 30 mA

Mounting Style: PCB Mount

Termination Style: Solder Pad

Moisture Sensitive: Yes

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 400 mA

Load Voltage Rating: 60 VAC, 60 VDC

On Resistance - Max: 1.5 Ohms

Control Voltage Range: 1.1 VDC to 1.4 VDC

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 40 C

Input to Output Isolation Method: Optocoupler
