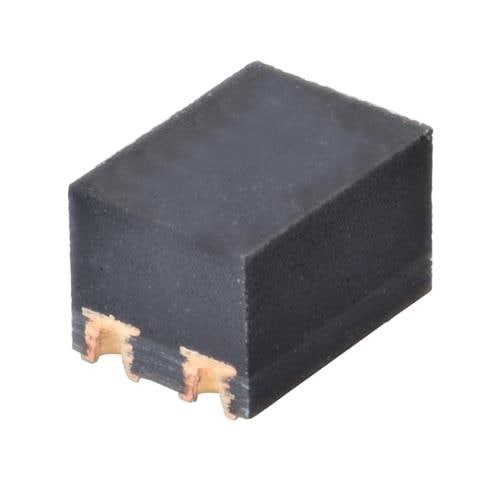

Omron Electronics G3VM-41QR10 Solid State Relays SPST-NO 40V 120mA High Switch Capacity

Width: 1.45 mm (0.057 in)

Height: 1.3 mm (0.051 in)

Length: 2 mm (0.079 in)

Output Type: MOSFET

Unit Weight: 1.169 g

Contact Form: SPST (1 Form A)

Input Current: 30 mA

Mounting Style: PCB Mount

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 120 mA

Load Voltage Rating: 40 VAC, 40 VDC

Control Voltage Range: 1.1 VDC to 1.4 VDC

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 40 C
