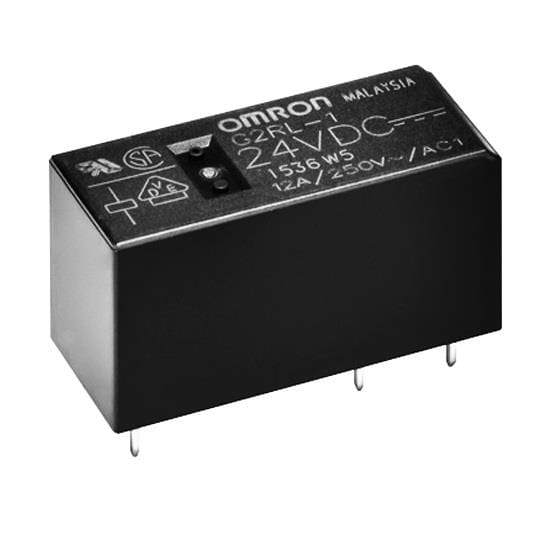

Omron Electronics G2RL-1-E-HA DC5 Low Profile PCB Power Relay Low Profile 16A
ModelG2RL-1-E-HA DC5
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 12.7 mm
Height: 15.7 mm
Length: 29 mm
Coil Type: Non-Latching
Unit Weight: 12 g
Coil Current: 80 mA
Coil Voltage: 5 VDC
Mounting Style: Through Hole
Coil Resistance: 62.5 Ohms
Coil Termination: Solder Pin
Contact Material: Silver Alloy (Ag)
Power Consumption: 400 mW
Switching Voltage: 440 VAC, 300 VDC
Relay Contact Form: 1 Form C (SPDT-NO, NC)
Contact Termination: Solder Pin
Contact Current Rating: 16 A
