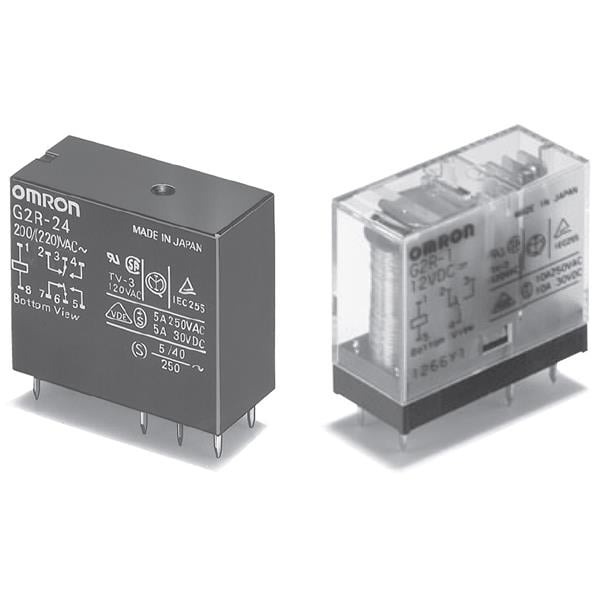

Omron Electronics G2RK-1A-DC5 Standard SPST-NO Thru-Hole 5A 5VDC 30 Ohm
ModelG2RK-1A-DC5
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 12.8 mm
Height: 25.5 mm
Length: 29 mm
Coil Type: Dual Coil Latching
Unit Weight: 17 g
Coil Current: 106 mA
Coil Voltage: 5 VDC
Contact Form: SPST (1 Form A)
Mounting Style: Through Hole
Coil Resistance: 47 Ohms
Coil Termination: Solder Pin
Contact Material: Silver Alloy (Ag)
Power Consumption: 850 mW
Switching Voltage: 380 VAC, 125 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Contact Termination: Solder Pin
Contact Current Rating: 5 A
