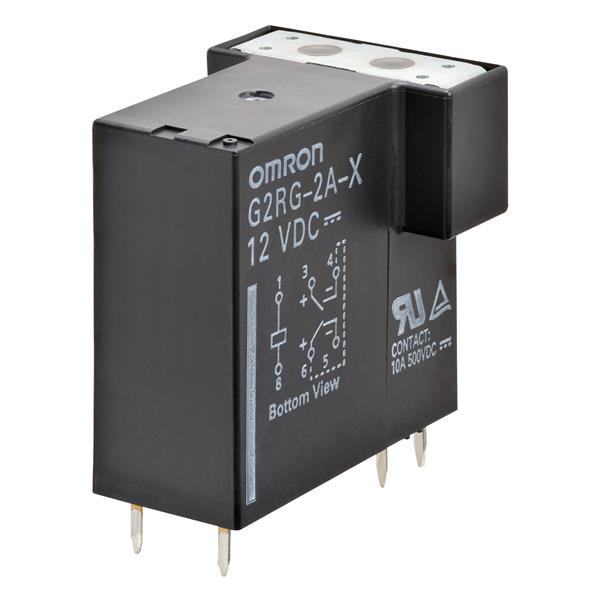

Omron Electronics G2RG-2A-X DC24 High Capacity High VDC Power Relay
ModelG2RG-2A-X DC24
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 13.5 mm
Height: 29.5 mm
Length: 29 mm
Coil Type: Non-Latching
Compliance: EN/IEC, TUV, UL
Coil Current: 33.3 mA
Coil Voltage: 24 VDC
Contact Rating: 8 A
Mounting Style: PCB Mount
Coil Resistance: 720 Ohms
Coil Termination: PC Pin
Contact Material: Silver
Power Consumption: 800 mW
Switching Voltage: 500 VDC
Relay Contact Form: 2 Form A (DPST-NO)
Contact Termination: Solder Pin
Contact Current Rating: 8 A
Maximum Switching Current: 10 A
