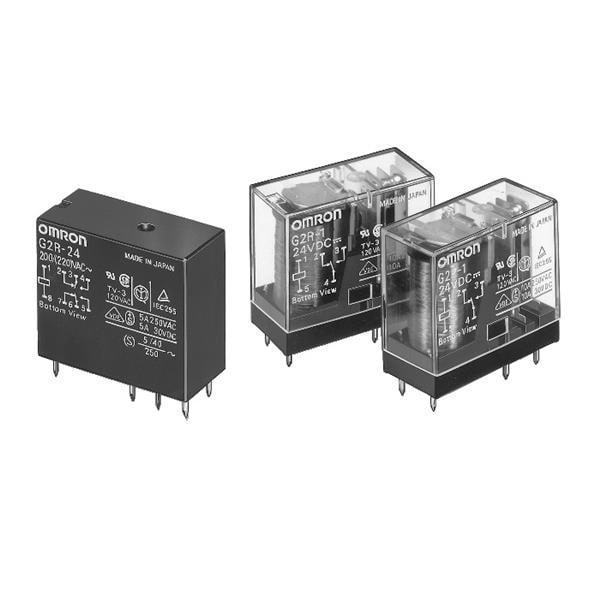

Omron Electronics G2R-24-H-AUL DC12 Standard Power PCB Relay
ModelG2R-24-H-AUL DC12
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 12.8 mm
Height: 25.5 mm
Length: 29 mm
Coil Type: Non-Latching
Unit Weight: 17 g
Coil Current: 75 mA
Coil Voltage: 12 VDC
Contact Form: DPDT (2 Form C)
Contact Rating: 5 A at 250 VAC
Mounting Style: Through Hole
Coil Resistance: 65 Ohms
Coil Termination: Solder Pin
Contact Material: Silver Alloy (Ag)
Power Consumption: 900 mW
Switching Voltage: 380 VAC, 125 VDC
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Termination: Solder Pin
Contact Current Rating: 4 A
Maximum Switching Current: 5 A
