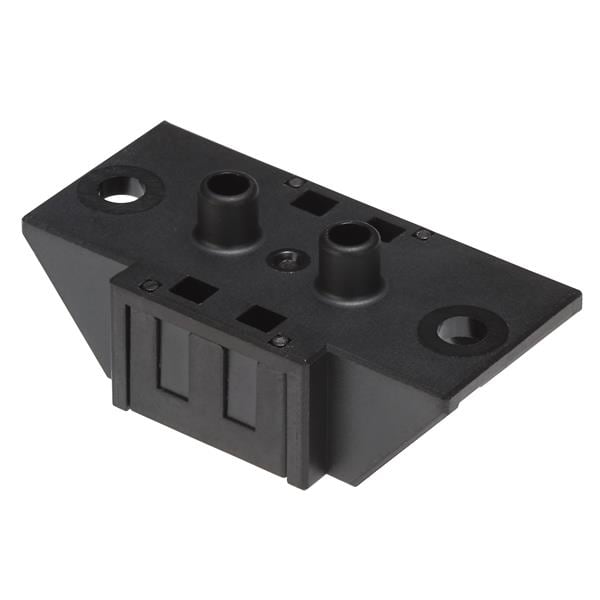

Omron Electronics D6F-PH0025AMD2 Transducers MEMS Differential Pressure Sensor, 0 to 250 Pa, Manifold, 4-pin connector

Width: 18 mm

Height: 10.35 mm

Length: 35 mm

Accuracy: 3 %

IP Rating: IP40

Port Size: 4.9 mm x 4 mm

Output Type: Digital

Unit Weight: 5.400 g

Pressure Port: Port

Pressure Type: Differential

Mounting Style: PCB Mount

Operating Pressure: 0 Pa to 250 Pa

Supply Voltage - Max: 3.6 VDC

Supply Voltage - Min: 2.3 VDC

Operating Supply Current: 6 mA

Operating Supply Voltage: 2.3 VDC to 3.6 VDC

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C
