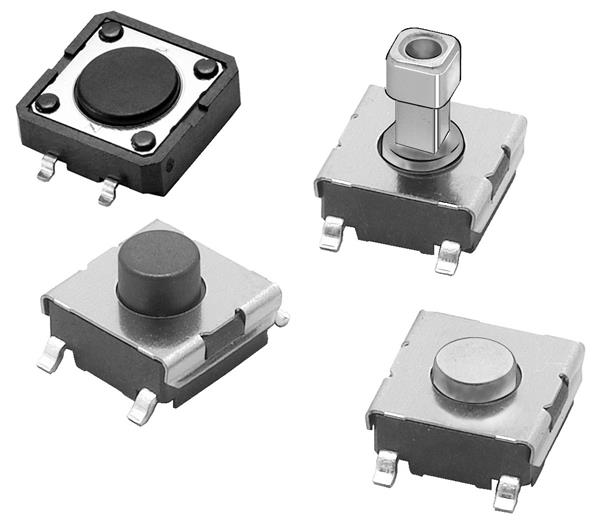

Omron Electronics B3F-5051 Tactile Switches Projected 7.3x12.5 Gold Pl w/out Grd Tm
ModelB3F-5051
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 10000000 Cycle
Color: Blue
Width: 12 mm
Height: 3.5 mm
Length: 12 mm
Travel: 0.3 mm
Actuator: Snap Top
Illuminated: Non-Illuminated
Stem Height: 7.3 mm
Unit Weight: 850 mg
Contact Form: SPST
Current Rating: 50 mA
Mounting Style: Through Hole
Contact Plating: Silver
Ground Terminal: No
Operating Force: 1.3 N
Switch Function: OFF - (ON)
Termination Style: Solder Pin
Voltage Rating DC: 24 VDC
Mounting Direction: Straight
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 25 C
