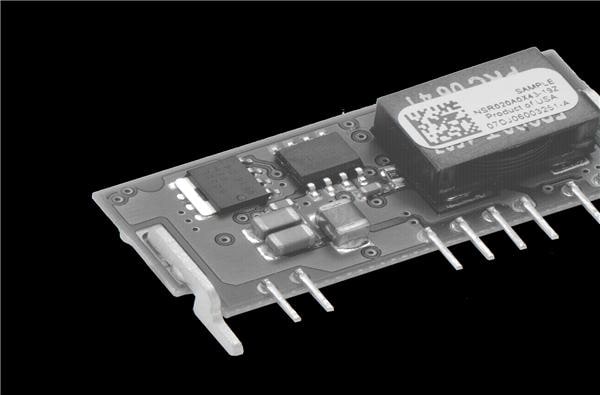

OmniOn Power (Formerly ABB Power Conversion) NSR020A0X43Z Non-Isolated / PoL 0.59-6Vout 20A SIP 4.5-13.8Vin

Width: 15.5 mm (0.61 in)

Height: 9.2 mm (0.362 in)

Length: 36.8 mm (1.449 in)

Industry: Industrial

Output Type: Non-Isolated

Unit Weight: 6.600 g

Output Power: 120 W

Mounting Style: Through Hole

Number of Outputs: 1 Output

Input Voltage - Max: 13.8 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 9 V

Output Current-Channel 1: 20 A

Output Voltage-Channel 1: 590 mV to 6 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
