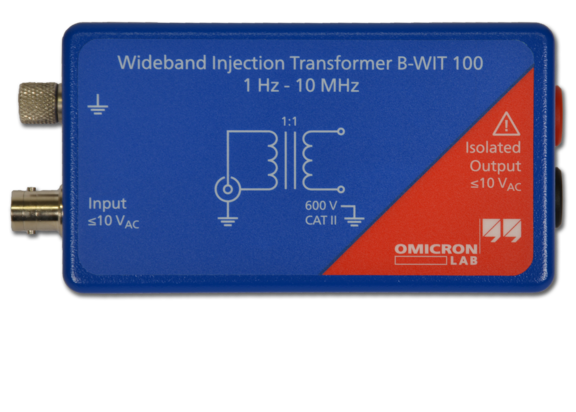

OMICRON B-WIT 100 Wideband Injection Transformer
ManufacturerOMICRON(View more products from this manufacturer)
ModelB-WIT 100
OriginAustria
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Key Features:
Optimized for signal insertion into control loops
Extremely wide usable frequency range: 1 Hz – 10 MHz
High linearity & low insertion loss
Safe isolation rated to 600V CAT II
Some Technical Data:
Usable frequency range: 1 Hz – 10 MHz
-3 dB frequency range: 7 Hz – 5 MHz (typ.)
Insertion loss: < 0.5 dB @ 10 kHz
Turns ratio: 1:1
Pri-Sec capacitance: 120 pF @ 1 kHz (typ.)
