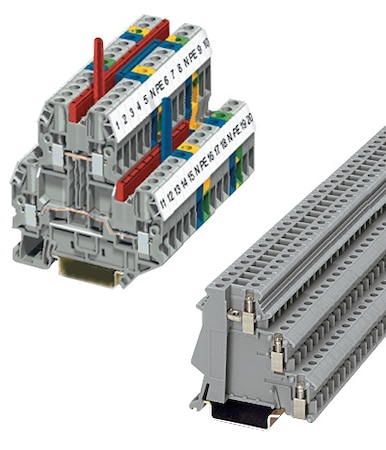

OMEGA XBUTT4PE Double and Triple Level Feed-through or Sensor Terminal Blocks (24 to 8 AWG, Double Level grounding)

Wire Gauge: 24 to 8 AWG

Cover Width: 2.2 mm

Thread Type: Metric

Amperage, Max: 0 A

Color Options: Green/Yellow

Accessory Type: Double Level grounding

Terminal Width: 8.2 mm

Voltage Rating: N/A

Wire Size, Max: 4 mm²

Load Current, Max: 30 A

Tightening Torque: 5.3 to 7.1 Nm

Cross-Section Area: 6 mm²

V/A/AWG Compliance: Voltage Rating (UL-cUL Ratings)=300 V;Voltage Rating (IEC 60 947-7-1)=800 V;Amperage, Max (IEC 60 947-7-1)=36 A;Amperage, Max (UL-cUL Ratings)=30 A;Wire Gauge (IEC 60 947-7-1)=26 to 10 AWG;Wire Gauge (UL-cUL Ratings)=26 to 10 AWG

Contamination Class: 3

Number of Terminals: 2

Rated Surge Voltage: 8 kV

Additional Features 1: Wide double level Terminal Blocks with potential distribution between the levels

Compatible Wiring Note: Stranded Ferrule with Plastic Sleeve=0.25 - 6 mm²;Stranded with Ferrule=0.25 - 6 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 4 mm²;Solid=0.2 - 2.5 mm²

Insulation Strip Length: 9 mm
