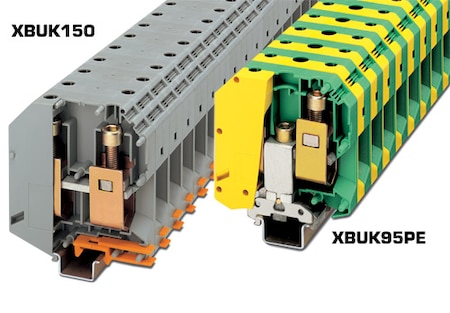

OMEGA XBUK150 High Current Terminal Blocks, Width 25 mm (0.98 in), up to 232 A (Terminal Block)

Wire Gauge: N/A

Thread Type: Metric

Amperage, Max: 0 A

Color Options: Black

Accessory Type: Terminal Block

Terminal Width: 31 mm

Voltage Rating: N/A

Wire Size, Max: 150 mm²

Load Current, Max: 309 A

Tightening Torque: 25 to 30 Nm

Cross-Section Area: 150 mm²

V/A/AWG Compliance: Voltage Rating (UL-cUL Ratings)=600 V;Voltage Rating (EN 50 019)=726 V;Voltage Rating (IEC 60 947-7-1)=1000 V;Amperage, Max (IEC 60 947-7-1)=309 A;Amperage, Max (EN 50 019)=265 A;Amperage, Max (UL-cUL Ratings)=285 A;Wire Gauge (IEC 60 947-7-1)=2 to 300 AWG;Wire Gauge (EN 50 019)=2 to 300 AWG;Wire Gauge (UL-cUL Ratings)=2 Kcmil to 300 Kcmil

Contamination Class: 3

Rated Surge Voltage: 8 kV

Additional Features 1: Screw connection high current terminal block

Compatible Wiring Note: Stranded Ferrule with Plastic Sleeve=50 - 150 mm²;Stranded with Ferrule=50 - 150 mm²;Stranded with Ferrule without Plastic Sleeve=25 - 50 mm²;Solid=25 - 50 mm²

Insulation Strip Length: 40 mm
