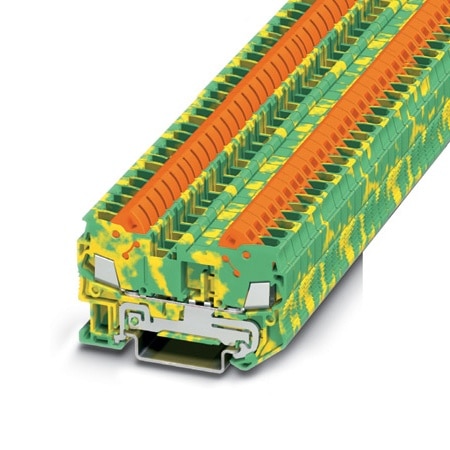

OMEGA XBQT25PE Insulation Displacement Connection Ground Terminal Blocks (Insulation Displacement, 26 to 10 AWG, Ground Block)

Materials: Copper Allloys/Polyamide 6.6 Housing

Insulation: PVC/PE

Wire Gauge: 26 to 10 AWG

Cover Width: 2.2 mm

Thread Type: Metric

Amperage, Max: 0 A

Color Options: Green/Yellow

Accessory Type: Ground Block

Terminal Width: 6.2 mm

Voltage Rating: N/A

Wire Size, Max: 2.5 mm²

Tightening Torque: 0.6 to 0.8 Nm

V/A/AWG Compliance: Wire Gauge (UL-cUL Ratings)=20 to 14 AWG;Wire Gauge Connection Data=20 to 14 AWG

Contamination Class: 3

Number of Terminals: 2

Rated Surge Voltage: 8 kV

Additional Features 1: IDC ground TB

Electrical Connection: Insulation Displacement

electrical-connection: Insulation Displacement

Compatible Wiring Note: Stranded Ferrule with Plastic Sleeve=0.25 - 2.5 mm²;Stranded with Ferrule=0.25 - 2.5 mm²;Stranded with Ferrule without Plastic Sleeve=0.25 - 1.5 mm²;Stranded with Twin Ferrule with Plastic Sleeve=0.5 - 1.5 mm²;Single/Multiple/Superfine Strand=1.5 mm²;Fine Stranded/Superfine Strand=24 to 16 AWG;Solid=0.14 - 1.5 mm²;Halogen-Free=1.5 mm²

Insulation Strip Length: 9 mm
