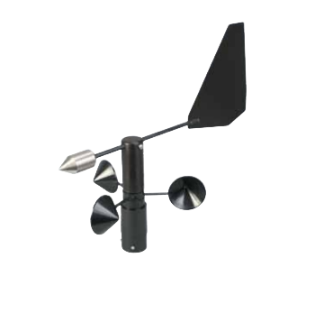

OMEGA WMS-23S Wind Monitoring Station with Alarms and Analog Outputs (0~100 MPH, 4~20 mA Outputs, No Display)

WMS-23S(Wind speed) Wind speed monitor 4 to 20 mA output

Measurement Range: 0 to 100 mph

Transducer Type: Reed switch

Threshold Speed: 0.8 mph

Accuracy: 1 mph or ± 3%

Output: 4 to 20 mA, proportioned to 0 to 100 mph

Dimensions Anemometer: 114 H x 216 mm W (4.5 x 8.5")

Current Loop Accuracy: ± 1% full scale

Power: 8 to 30 Vdc

Circuit Time Constant: 1 sec

Temperature Range: -40 to 40°C (-40 to 104°F)

Dimensions Electronics Enclosure: 120 x 120 x 57 mm D (4.7 x 4.7 x 2.25")

Comes with 4 to 20 mA outputs, Cable 12 m (40') and operator’s manual
