OMEGA WMS-21 Wind Monitoring Station with Alarms and Analog Outputs (0~100 MPH, No Output, 3A SPDT, No Display)

WMS-21(Wind Speed) Dual setpoint wind station

Measurement Range: 0 to 100 mph

Transducer Type: Sealed magnetic switch

Avg Speed Resolution: 0.1 mph

Threshold Speed: 1 mph

Measurement Accuracy: 1 mph or 3%

Controls: Protected push-button for run, or set variables, select menu items, increment and decrement alarm values

Alarm On/Off Delay Range: 0 to 99 sec

Contact Ratings: 3 A SPDT @ 24 Vdc

Display: 2 line x 16 character LCD

Character Size: 3 x 8 mm

Setpoint 1 and 2: LED

Supply Voltage: 12 Vac or Vdc

Supply Current: 50 mA, 5 mA nominal

Operating Temperature: -20 to 50ºC (-4 to 122°F)

Dimensions:

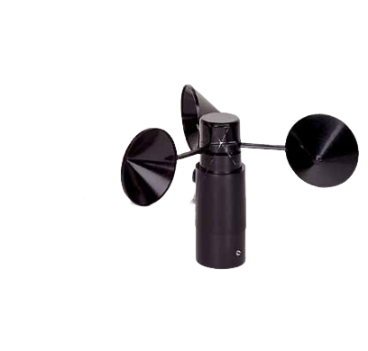

Anemometer: 114.3 H x 215.9 W mm (4.5 x 8.5")

Sensor Cable Length: 12 m (40'), supplied

Electronics Enclosure Size: 119.3 H x 198.1 W x 88.9 D mm (4.7 x 7.8 x 3.5")

Comes complete with sensor cable and operator’s manual
