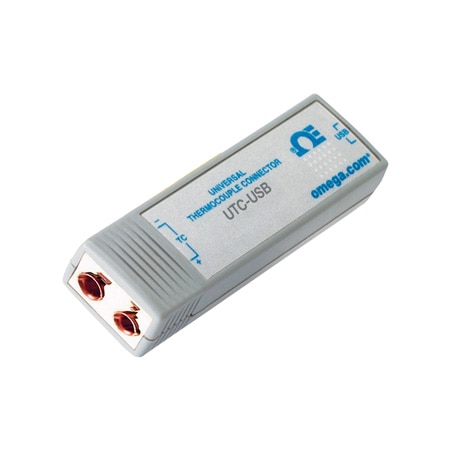

OMEGA UTC-USB USB to PC Universal Thermocouple Connector (J, K, T, E, R, S, B, C, N, Universal Female Thermocouple Connector)

Width: 25.4 mm

Height: 13 mm

Length: 76 mm

Accuracy: ± 0.5 %

Enclosure: Plastic

Resolution: 1 °C

Cable Length: 1.8 m

Accuracy Note: Type J, K: ± 0.5% of reading or ± 1.0°C (1.8°F), whichever is greater Type T, E, N: ± 0.5% of reading or ± 2.0°C (3.6°F), whichever is greater Type R, S, B, C: ± 0.5% of full scale

USB Type Note: Version 1.0, 1.1 and 2.0 compatible; mini-B connector; 1.8 m (6') cable included

Data Interface: USB

Enclosure Note: Plastic (glass filled nylon)

Sensing Element: Thermocouple

Thermocouple Type: J, K, T, E, R, S, B, C, N

Data Interface Note: USB (one interface cable included with receiver)

Electrical Connection: Universal Female Thermocouple Connector

Number of Pins Sockets: 2

Software Compatibility: Requires Windows® 2000, XP, VISTA (32-bit) or Windows 7 (32-bit)

Electrical Connection Note: Patented universal female accepts both standard or miniature male connector

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -10 °C
