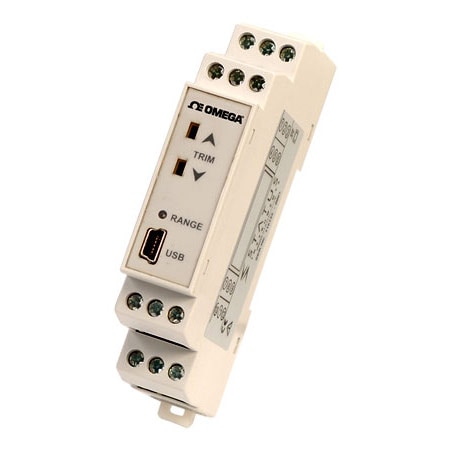

OMEGA TXDIN1630 DIN Rail Universal Input Transmitter with Push Button User Trim (Thermocouple, RTD, Voltage, Current, -40 to 75 mV, K: 200 to 1370°C, J: -100 to 1200°C, E: -100 to 1000°C, N: -180 to 1300 °C, T:-100 to 400°C, R:-10 to 1760°C, S:-10 to 1760°C,Pt100: -200 to 850°C)

Width: 17.5 mm

Height: 17.5 mm

Length: 90 mm

Accuracy: ± 0.04 mV, ± 0.008 mA

Mounting: DIN Rail Mount

Software: Windows PC Software

Approvals: CE, RoHS

Isolation: 500 Vdc

Materials: Polyimide 6.6

Input Type: Thermocouple, RTD, Voltage, Current

Shell Color: Gray

Cable Length: 2.5 mm

Output Value: Process

RTD Accuracy: ±0.1 °C

Relay Output: 250 Vac @ 1 A

Output Detail: Type: 3-wire voltage output with programmable ranges: 0 to 10, 0 to 5, 2 to 10, 1 to 5, and 0 to 1V. Output Drive: 2 mA driving 5 kΩ @ 10V. User Trim: Raise and lower buttons, active for offset when output is at offset and span, trim lock option

Output Signal: Dual form C relay contacts

Response Time: <500 ms

Serial Number: Reverse connection and over-voltage protection, max over voltage current 100 mA

Approvals Note: CE tested to BS EN 61326

Number of Inputs: 3

Relative Humidity: 10 to 95% RH non-condensing

Response Time Note: <500 ms to reach 95% of final value; start up time <3 s

Electrical Connection: Screw Terminal

Thermocouple Accuracy: Type K,J,E,N,T: ± 0.1 %, Type R,S: ± 0.5 °C

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -40 °C

Voltage Measurement Range: -40 to 75 mV

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -20 °C

Temperature Measurement Range: K: 200 to 1370°C, J: -100 to 1200°C, E: -100 to 1000°C, N: -180 to 1300 °C, T:-100 to 400°C, R:-10 to 1760°C, S:-10 to 1760°C,Pt100: -200 to 850°C
