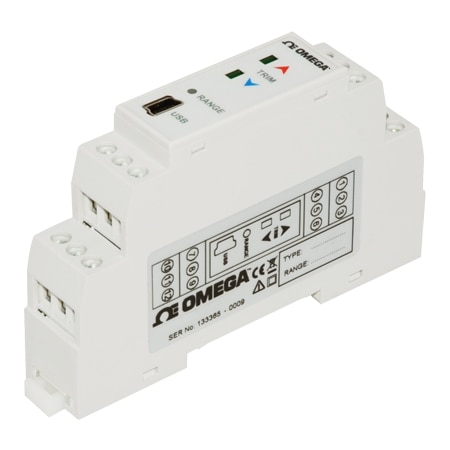

OMEGA TXDIN1600S DIN Rail Strain Gage/Load Cell Transmitter w/ Bipolar mA/V Output (Four Wire Bridge Radiometric, -38 to 38 mV dc)

Drift: < ± 0.05%

Width: 17.5 mm

Filter: 1 to 20 seconds to reach 70% of final value

Height: 90 mm

Length: 56.4 mm

Offset: Tare Input Type - Remote volt free contact, up to 10 meter distance

Weight: 70 g

Accuracy: ± 5 mV

Mounting: DIN Rail 43880, Color Grey

Software: Windows PC Software

Approvals: CE

Baud Rate: 19200

Isolation: 500 Vdc

Linearity: ±0.01%

Materials: Polyimide 6.6

Input Type: Four Wire Bridge Radiometric

Calibration: Calibration Scaling: 2 to 6 points signal against process;Active Calibration:Active calibration against live load cell

Shell Color: Gray

Update Rate: 10 or 80 SPS

Display Type: LED

Output Value: Process

Accuracy Note: Input Accuracy : (mA out/2000) or 5 uA whichever is the greater, drift 1 uA/°C, Output Accuracy: ± 5 mV

Output Detail: Current: Current Source: Range (0 to 21.5) mA, max load 750 Ω Current Sink: Range 0 to 21.5 mA, supply 10 to 30 Vdc, voltage effect 0.2 uA/V Output Voltage Current Drive: ± 2 mA, min load 5000 Ω @ 10 V

Output Signal: Current, Voltage

Approvals Note: CE: BS EN 61326

Data Interface: USB

LED Indicators: LED, Green when output -0.1 to 100.1%, all else red

Supply Voltage: 10 to 48 Vdc, 10 to 32 Vac

Impedance Input: Bridge: 85 to 10000 Ω

Input Range Note: -7.6 to 7.6 mV/V (-38 to 38) mV at 5V excitation

Number of Inputs: 1

Electrical Output: 0 to 21.5 mA

Enclosure Ratings: IP65

Relative Humidity: 10 to 90%RH (non condensing)

Supply Power Note: 10 to 48 Vdc, 10 to 32 Vac protected by internal 500 mA resettable fuse Power:< 1 W full power

Supply Power Type: AC/DC

Excitation Current: 59 mA

Excitation Voltage: 5 Vdc

Voltage Output Range: 0 to 10.1 V, ± 10.1 V

Additional Features 1: Tag Number: 20 Characters

Voltage Measurement Range: -38 to 38 mV dc

Operating Temperature, Max: 70 °C

Operating Temperature, Min: -30 °C
