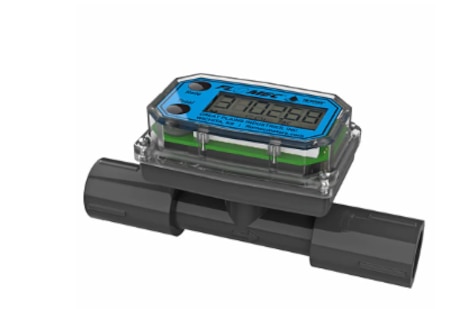

OMEGA TM20NPOXXC Economical Turbine Flow Meter with LCD Display (2 in, NPT Female, 200 GPM)

Accuracy: ± 3 %

Approvals: RoHS, CE

Display Type: None

Accuracy Note: Extended Low flow Range accuracy: ±5.0% rdg (display models only)

Output Detail: pulse output (option): Open collector sinking, 9 to 35 Vdc

Output Signal: DC Pulse

Repeatability: ±0.1%

Electrical Output: Amplified Square Wave

Materials, Wetted: 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide

Pressure Drop, Max: 150 psi

Media Compatibility: Liquids

Battery Size and Type: Li-ion

Operating Pressure, Max: 225 psi

Process Connection Size: 2 in

Process Connection Type: NPT Female

Storage Temperature, Max: 70 °C

Storage Temperature, Min: -40 °C

Volumetric Flow Rate, Max: 200 GPM

Volumetric Flow Rate, Min: 1 GPM

Operating Temperature, Max: 60 °C

Operating Temperature, Min: 0 °C
