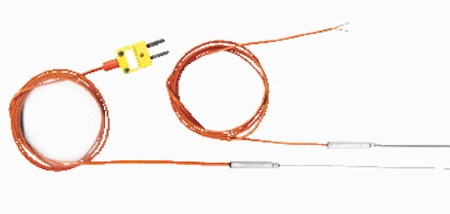

OMEGA TJC1-CAXL-IM050U-100 Thermocouple Probes with Lead Wire & Compact Transition (Thermocouple, K, 800 °C, Immersion Probe)

Wire Type: Stranded

Insulation: PFA

Probe Type: Compact Transition Joint Probes

Wire Gauge: 24 AWG

Cable Length: 1 m

Probe Length: 100 mm

Junction Type: Ungrounded

Probe Diameter: 0.05 mm

Insulation Note: Super OMEGACLAD® XL Compacted Mineral Insulation Cable for Long-Lasting Performance in Harsh Conditions

Sheath Material: Dual Wall XL

Thermocouple Type: K

Alloy Material (+): Chromel

Alloy Material (-): Alumel

Color Code Standard: IEC

Number of Connectors: N/A

Electrical Connection: Stripped Leads

Temperature Probe Style: Immersion Probe

Temperature Sensor Type: Thermocouple

Transition Joint Length: 30 mm

Process Temperature, Max: 800 °C

Process Temperature, Min: 0 °C

Transition Joint Outer Diameter: 4.5 mm
