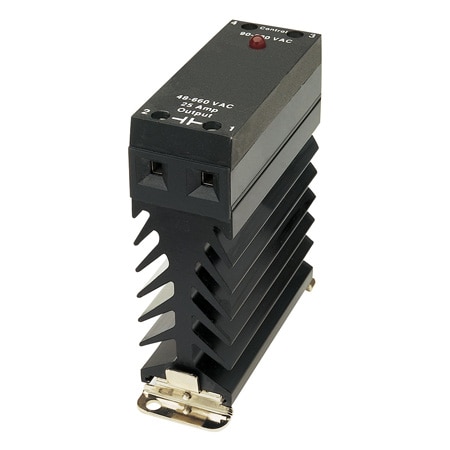

OMEGA SSRDIN660AC55A Single-Phase SSR Vdc & Vac Input/ Vac Output. DIN Rail/Panel Mount

Weight: 600 g

Frequency: 40 to 63 Hz

Power Cycle: Turn-On Time: None; Turn-Off Time: None

Current Output: 55 A

Voltage Output: 48 to 660

Dropout Voltage: 10 Vac

Wire Gauge Note: Input Strandard Wire Gauge: None; Input Solid Wire Gauge: None; Output Stranded Wire Gauge: None; Output Solid Wire Gauge: None

Housing Material: UL 940VD (self-extinguishing)

Input Resistance: None

Number of Phases: 1

Signal fail-safe: None

Thermal Sensitivity: None

Input Control Signal: 90 to 140 Vac

Isolated Analog Voltage: 4000 Vrms

Storage Temperature, Max: 100 °C

Storage Temperature, Min: -40 °C

Input-to-Output Capacitance: 8 pF

Input/Output-to-Ground Isolation: 4000 Vrms
