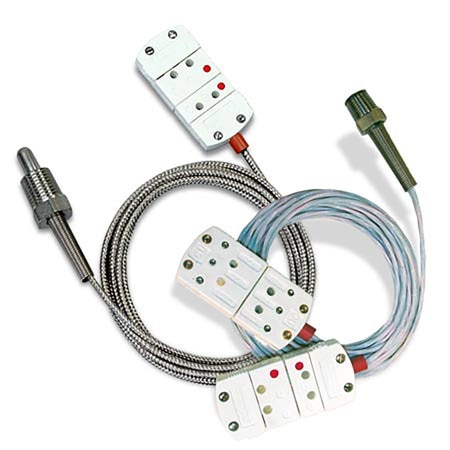

OMEGA RTD-NPT-72-E-1/4 Pipe Plug RTD Probes with NPT Fitting and Lead Wire (NPT Male, 1/4 in, 230 °C)

Wire Type: Stranded

Insulation: PFA

Probe Type: Pipe Plug RTD Probes

Wire Gauge: 26 AWG

Cable Clamp: PCLM-MTP

Connector A: Stripped Leads

Connector B: 3-Prong Miniature Female Thermocouple Connector

Cable Length: 72 in

Probe Length: 0.5 in

Pressure, Max: 2500 psi

Probe Diameter: 0.24 in

Insulation Note: PFA Insulated Lead Wires

Number of Wires: 3

Sensing Element: 100 Ω Class “A” DIN Platinum Element

Sheath Material: 304 Stainless Steel

Nominal Resistance: 100 Ω

Process Connection Size: 1/4 in

Process Connection Type: NPT Male

Temperature Coefficient: 0.00385Ω/Ω/°C

Temperature Probe Style: Immersion Probe

Temperature Sensor Type: RTD

Process Temperature, Max: 230 °C

Process Temperature, Min: -50 °C

Temperature Coefficient Note: α=0.00385Ω/Ω/°C

Nominal Resistance/Curve Note: High-Accuracy, 100 Ω, Thin-Film Class “A” DIN Platinum Elements
