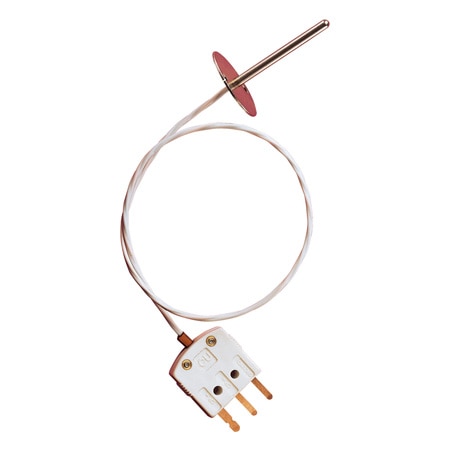

OMEGA RTD-860-600-SE Flanged Mounted RTD Probes with Lead Wire (Stripped Leads, 230 °C)

Wire Type: Stranded

Insulation: PFA

Probe Type: Precision RTD Probes

Wire Gauge: 26 AWG

Cable Clamp: PCLM-MTP

Cable Length: 600 in

Probe Length: 1.5 in

Probe Diameter: 0.125 in

Insulation Note: 1 m (40") long PFA insulated with MTP Connector

Number of Wires: 3

Sheath Material: 304 Stainless Steel

Nominal Resistance: 100 Ω

Electrical Connection: Stripped Leads

Temperature Probe Style: Air Probe

Temperature Sensor Type: RTD

Process Temperature, Max: 230 °C

Process Temperature, Min: -50 °C

Nominal Resistance/Curve Note: High-Accuracy 100 Ω Class “A” DIN Platinum Element Standard
