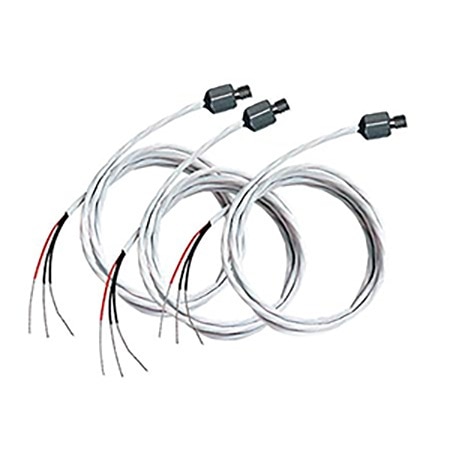

OMEGA RTD-850M-B Class B RTD Sensors for Specialized Applications (4 mm, Stripped Leads, 230 °C, Class B)

Accuracy: Class B

Wire Type: Stranded

Insulation: PFA

Probe Type: Industrial-Grade RTD Sensors

Wire Gauge: 26 AWG

Cable Length: 40 in

Probe Length: 1.5 in

Probe Diameter: 0.125 in

Number of Wires: 3

Sheath Material: 304 Stainless Steel

Nominal Resistance: 100 Ω

Electrical Connection: Stripped Leads

Process Connection Size: 4 mm

Temperature Coefficient: 0.00385Ω/Ω/°C

Temperature Probe Style: Air Probe

Temperature Sensor Type: RTD

Process Temperature, Max: 230 °C

Process Temperature, Min: -50 °C

Temperature Coefficient Note: α=0.00385Ω/Ω/°C

Nominal Resistance/Curve Note: Industrial-Grade (Class “B”, ± 0.12%) Accuracy
