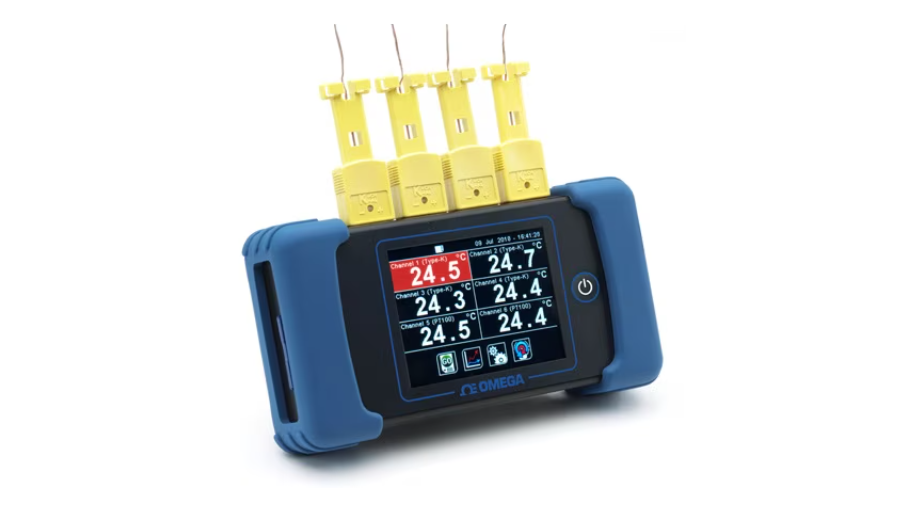

OMEGA RDXL6SD-USB Six Channel Handheld Rechargeable Temperature Data Logger (6CH, 0 ~ 1768°C)

Inputs: 4x thermocouple inputs for use with miniature thermocouple connectors, and 2 x spring clamp terminals for 2 or 3-wire RTDs, 28 to 16 AWG

Input Temperature Range:

Type J: -200 to 1200°C

Type K: -200 to 1372°C

Type T: -200 to 400°C

Type R: 0 to 1768°C

Type S: 0 to 1768°C

Type N: 0 to 1300°C

Type E: -200 to 1000°C

RTD: -200 to 850°C

Temperature Accuracy:

For Thermocouples: ±0.1% or 0.8°C

For RTD: ±1.0% or 1.0°C

Temperature Resolution: 0.1° for temperatures below 1000°C or °F, 1° for temperatures above 1000°C or °F

Display: 72 mm (2.83") resistive touch TFT, 320 x 240 pixels, backlit

Configurable Parameters: Temperature units, alarms, signal processing, date and time, data logging, power options, graph channels

Temperature Units: °F or °C

Alarm Configuration: 12 x alarms (2 per channel) with adjustable level, individually configurable as HI or LO

Signal Processing: Average, minimum, maximum, standard deviation, 2-channel temperature difference

Display Response Time: 1 second

Operating Temperature: 0 to 50°C (32 to 122°F)

Power Supplies: Built-in rechargeable battery, USB, or 5 Vdc adaptor (included)

Battery Life: 32 hour logging with full display brightness; up to 96 hours while logging in power saving mode

Weight: 200 g (7 oz) without thermocouples

Dimensions: 136 W x 71 H x 32 D mm (5.35 x 2.8 x 1.25")

Data Logging Specifications

Data Logging Interval: 1 to 86,400 seconds (1 day)

Maximum SD Card Capacity: 32 GB SD Card (4 GB included)

Variables Logged: Measured temperature, cold junction

temperature, alarm events

File Format: .csv (can be imported to Excel)

Configurable Parameters: Sample period, number of samples, scheduled start date and time
