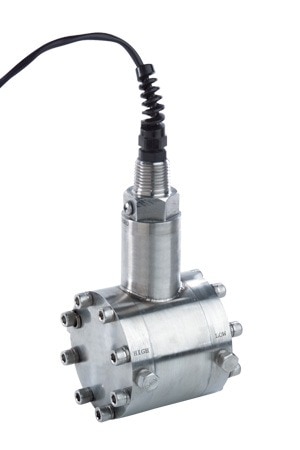

OMEGA PXM80MD0-014BARDi Wet/Wet Differential Pressure Transducers for High Line Pressure (Differential, 14 bar, BSPP Female, 1/4 in)

Weight: 5 lb

Accuracy: ± 0.3 %

Hysteresis: ± 0.10% FSO

Output Signal: Current

Pressure Type: Differential

Pressure, Max: 14 bar

Pressure, Min: 0 bar

Accuracy Class: > 0.25%

Burst Pressure: 600 psi Maximum

Supply Voltage: 10 to 40 Vdc

Linearity Error: ± 0.25%

Electrical Output: 4 to 20 mA

Materials, Wetted: 17-4 Stainless Steel, Buna-N (NBR)

Zero/Balance Error: 4 mA ± 0.4 mA adj

Burst Pressure Note: 6000 psi (414 bar) minimum

Repeatability Error: ± 0.1% full scale

Line/Static Pressure: 1500 psi

Loop Resistance, Max: (Input voltage – 12) x 50

Electrical Connection: Cable

Process Connection Size: 1/4 in

Process Connection Type: BSPP Female

Electrical Connection Note: Style 0 = 3 m (10') cable Style 1 = PTIH-10-6P (or equiv) Style 5 = Metal terminal box (4 to 20 mA output models only) Style 6 = mini DIN

Operating Temperature, Max: 107 °C

Operating Temperature, Min: -46 °C

Thermal Effect on Zero error, Max: 0.013% FSO/°C, 0.009% rdg/°C
