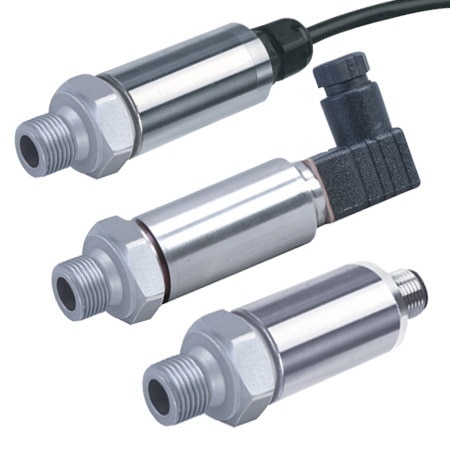

OMEGA PXM309-0.35G10V Metric, General Purpose, Stainless Steel Pressure Transducers (Gauge, 350 mBar, BSPP Male, 1/4 in)

Shock: 50 g, 11 ms half sine

Weight: 150 g

Accuracy: ± 0.25 %

Bandwidth: DC to 1 kHz

Stability: ± 0.25%

Vibration: ± 20 g

Cable Length: 1.5 m

Accuracy Note: Static Accuracy 350 mB to 700 bar: ± 0.25% FS BSL at 25ºC (includes linearity, hysteresis and repeatability)

Output Signal: Voltage

Pressure Type: Gauge

Pressure, Max: 350 mBar

Pressure, Min: 0 mBar

Response Time: 1 ms

Accuracy Class: 0.1% to 0.25%

Stability Note: Long Term Stability (1 yr): ± 0.25% FS

Supply Voltage: 15 to 30 Vdc

Pressure Cycles: 10 million

Electrical Output: 0 to 10 V

Enclosure Ratings: IP65

Materials, Wetted: None

Supply Power Note: 15 to 30 Vdc at 10 mA

Burst Pressure Note: None

Electrical Connection: Cable

Insulation Resistance: 1 MΩ

Electrical Output Note: None

Process Connection Size: 1/4 in

Process Connection Type: BSPP Male

Electrical Connection Note: 1.5 m (5') 2 or 3-conductor cable, mA or 10V outputs, respectively.

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -40 °C

Compensated Temperature, Max: 50 °C

Compensated Temperature, Min: 0 °C

Thermal Effect on Span error, Max: ± 1.5% gage and absolute

Thermal Effect on Zero error, Max: ± 1.5% gage and absolute
