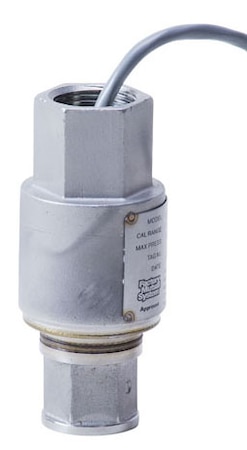

OMEGA PX831-015GI Compact, Intrinsically Safe Pressure Transducers (Gauge, 15 psi, NPT Female, 1/2 in)

Weight: 374 g

Accuracy: ± 0.3 %

Vibration: ± 0.1% FS for 3 g to 200 Hz

Fill Fluid: DC 200 silicone oil

Accuracy Note: ± 0.3% of span @ 25°C (includes linearity, hysteresis and repeatability)

Output Signal: Current

Pressure Type: Gauge

Pressure, Max: 15 psi

Pressure, Min: 0 psi

Accuracy Class: > 0.25%

Proof Pressure: 3x Full Scale

Supply Voltage: 12 to 30 Vdc

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP66, NEMA Type 4

Materials, Wetted: 316 Stainless Steel, 316L Stainless Steel

Relative Humidity: 0 to 1

Zero/Balance Error: 4 mA ± 2%

Proof Pressure Note: 300% of rated pressure

Loop Resistance, Max: 900 Ω @ 30 Vdc

Electrical Connection: 1/2 NPT male Conduit with Cable

Electrical Output Note: 4 to 20 mA(2 wire)

Process Connection Size: 1/2 in

Process Connection Type: NPT Female

Storage Temperature, Max: 100 °C

Storage Temperature, Min: -40 °C

Operating Temperature, Max: 60 °C

Operating Temperature, Min: -40 °C

Span Setting Adjustable Range: 16 mA ± 1% of span

Thermal Effect on Span error, Max: ± 2%

Thermal Effect on Zero error, Max: ± 2%, ± 2%
