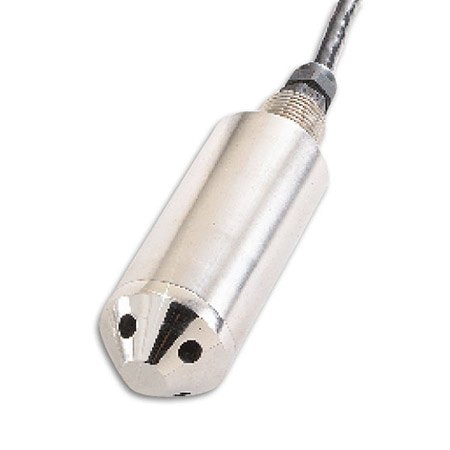

OMEGA PX78U7-010GI Submersible Pressure Transducers (Gauge, 10 psig, Submersible)

Accuracy: ± 0.05 %

Diameter: 1.5 in

Cable Length: 15 m

Accuracy Note: 0.5% linearity, hysteresis, and repeatability combined

Output Signal: Current

Pressure Type: Gauge

Pressure, Max: 10 psig

Pressure, Min: 0 psig

Accuracy Class: > 0.25%

Burst Pressure: 3x Full Scale

Proof Pressure: 150% Full Scale

Supply Voltage: 10 to 40 Vdc

Electrical Output: 4 to 20 mA

Materials, Wetted: 17-4 Stainless Steel, 316 Stainless Steel

Zero/Balance Error: 4 mA ± 0.5%

Burst Pressure Note: 300% of rated pressure

Loop Resistance, Max: (Input voltage – 10) x 50

Electrical Connection: Submersible Cable

Electrical Output Note: 4 to 20 mA ± 10% adj

Process Connection Note: Nose protector included

Process Connection Type: Submersible

Thermal Effect on Span error, Max: 0.0054% rdg/°C

Thermal Effect on Zero error, Max: 0.0054% rdg/°C, 0.009% FSO/°C
