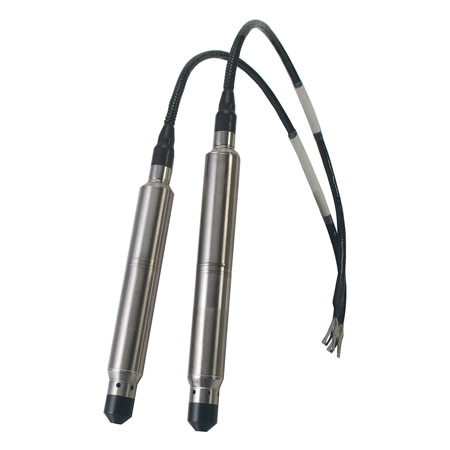

OMEGA PX709GW-100AV Submersible Pressure Transducers with 4 Output Options (Absolute, 100 psi, UNF Female, 9/16 in)

Shock: 50 g, 11 ms, half-sine horizontal and vertical axis

Weight: 285 g

Accuracy: ± 0.2 %

Bandwidth: DC to 1 kHz

Stability: ± 0.1%

Vibration: ± 20 g

Compliance: RoHS

Applications: Building and Maintenance, Fluid Measurement and Control, Waste Management

Current Draw: 5 mA @ 10 Vdc

Accuracy Note: (Combined Linearity, Hysteresis and Repeatability): Standard ± 0.20% BSL or high accuracy, option “HH”, ± 0.08% BSL Setting Accuracy(Span/Zero): ± 0.5% full scale typical, ± 1.0% full scale maximum (± 1.0% full scale typical, ± 2.0% full scale maximum for ranges ≤ 2.5 psi)

Cable Sealing: Fused to case via molded Neoprene boot rated to 610 m (2000') depth

Output Signal: Millivolt

Pressure Type: Absolute

Pressure, Max: 100 psi

Pressure, Min: 0 psi

Response Time: 500 µs

Accuracy Class: 0.1% to 0.25%

Burst Pressure: 4x Full Scale

Cable Material: ETFE

Proof Pressure: Up to 6000 psi

Stability Note: Long Term Stability (1 year.): ± 0.1% full scale typical

Supply Voltage: 5 to 10 Vdc

Pressure Cycles: 1 million

Input Resistance: 1000 to 5000 Ω

Electrical Output: 100 mV/V

Materials, Wetted: 316 Stainless Steel

Output Resistance: 5000 Ω ± 10%

Supply Power Note: 5 to 10 Vdc (ratiometric)

Response Time Note: 500 usec, 0 to 90% step change

Additional Features 1: Ground Measurements

Additional Features 2: None

Insulation Resistance: 100 MΩ

Electrical Output Note: 100 mV @ 10 Vdc (Ratiometric 5 to 10 Vdc)

Process Connection Size: 9/16 in

Process Connection Type: UNF Female

Electrical Connection Note: Integral lightning surge protection to IEC-61000-4-5 (Level 4)

Thermal Effect on Span error, Max: ± 0.3% span

Thermal Effect on Zero error, Max: ± 0.3% span , ± 0.3% span
