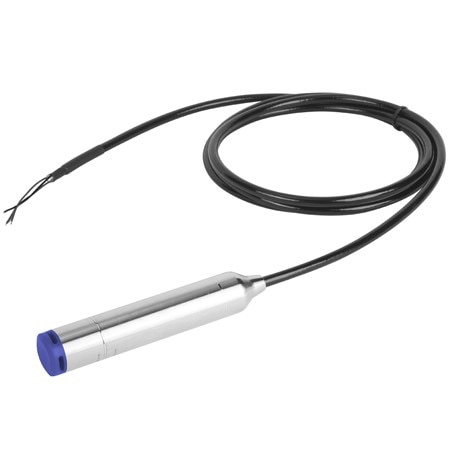

OMEGA PX633A2-015GI Submersible Pressure Transmitters with High Accuracy (Gauge, 15 psi, Submersible)

Accuracy: ± 0.25 %

Diameter: 28 mm

Stability: ± 0.2%

Fill Fluid: Silicon oil

Load Effect: ± 0.05% FS/kΩ

Cable Length: 50 in

Current Draw: 20.8 mA

Power Supply: 500 mW

Accuracy Note: 20°C ± 5°C (68°F ± 9°) PX633A1: 0.01% FS NLHR PX633A2: 0.25% FS NLHR PX633A5: 0.50% FS NLHR

Output Signal: Current

Pressure Type: Gauge

Pressure, Max: 15 psi

Pressure, Min: 0 psi

Accuracy Class: 0.1% to 0.25%

Supply Voltage: 10.5 to 55 Vdc

Thermal Effect: ± 0.2% FS/10K

Vibration Effect: IEC61298-3/GB/T 18271.3; 20g (5-2000HZ, max<± 3mm) <0.1% FS

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP68

Materials, Wetted: 316 Stainless Steel, FKM

Fits Cable Diameter: 7.3 to 7.7 mm

Loop Resistance, Max: <(U-10)/0.021 Ω, where U is supply voltage

Additional Features 1: Surge Protection

Electrical Connection: Submersible Cable

Transmission Distance: up to 1000 meters

Process Connection Type: Submersible
