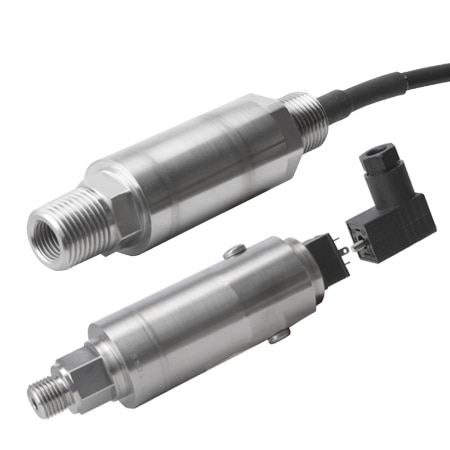

OMEGA PX51J6-7.5KAC2ISNP General Purpose, Intrinsically Safe Pressure Transmitters (Absolute, 7500 psi, UNF Male, 7/16 in)

Accuracy: ± 0.25 %

Accuracy Note: 0.25% FS linearity and hysteresis combined

Output Signal: Current

Pressure Type: Absolute

Pressure, Max: 7500 psi

Pressure, Min: 0 psi

Accuracy Class: 0.1% to 0.25%

Burst Pressure: 150% Full Scale

Supply Voltage: 10 to 32 Vdc

Trim Pot Access: None

Electrical Output: 4 to 20 mA

Materials, Wetted: 17-4 Stainless Steel

Burst Pressure Note: 3X Range

Additional Features 1: Intrinsically Safe IS FM Approval No Potentiometer

Additional Features 2: No Potentiometer

Electrical Connection: DIN 43650 C (solenoid valve)

Insulation Resistance: 100 MΩ @ 50 Vdc

Process Connection Size: 7/16 in

Process Connection Type: UNF Male

Operating Temperature, Max: 104 °C

Operating Temperature, Min: -40 °C

Compensated Temperature, Max: 71 °C

Compensated Temperature, Min: 16 °C

Thermal Effect on Zero error, Max: 0.003% of rdg/°F ,
