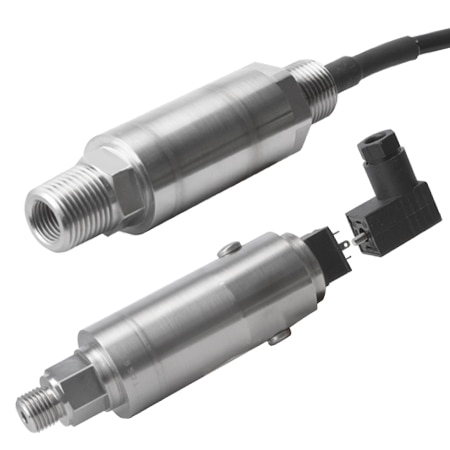

OMEGA PX51C0-1KAI Heavy Duty Pressure Transducers with Sealed SS Construction (Absolute, 1000 psi, NPT Male, 1/4 in)

Accuracy: ± 0.25 %

Accuracy Note: 0.25% FS linearity and hysteresis combined

Output Signal: Digital

Pressure Type: Absolute

Pressure, Max: 1000 psi

Pressure, Min: 0 psi

Accuracy Class: 0.1% to 0.25%

Burst Pressure: 3x Full Scale

Proof Pressure: 150% Full Scale

Trim Pot Access: O-ring sealed screws on side cover

Electrical Output: 4 to 20 mA

Materials, Wetted: 17-4 Stainless Steel

Electrical Connection: Cable

Insulation Resistance: 100 MΩ @ 50 Vdc

Process Connection Size: 1/4 in

Process Connection Type: NPT Male

Operating Temperature, Max: 104 °C

Operating Temperature, Min: -40 °C

Compensated Temperature, Max: 71 °C

Compensated Temperature, Min: 16 °C

Span Setting Adjustable Range: ± 10% FS

Zero Setting Adjustable Range: ± 10% FS

Thermal Effect on Zero error, Max: 0.003% of rdg/°F ,
