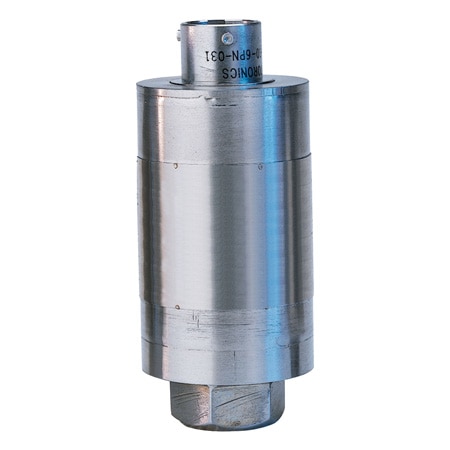

OMEGA PX32B1-1KGV High Temperature, Hermetically Sealed Pressure Transducers (Gauge, 1000 psi, NPT Female, 1/8 in)

Length: 2.9 in

Accuracy: ± 0.25 %

Diameter: 1.25 in

Accuracy Note: 0.25% linearity, hysteresis and repeatability combined

Output Signal: Millivolt

Pressure Type: Gauge

Pressure, Max: 1000 psi

Pressure, Min: 0 psi

Accuracy Class: 0.1% to 0.25%

Burst Pressure: 3x Full Scale

Proof Pressure: 2x Full Scale

Supply Voltage: 10 Vac/Vdc

Input Resistance: 360 Ω

Mating Connector: MIL-26482-I 10-6S

Electrical Output: 3 mV/V

Materials, Wetted: 17-4 Stainless Steel

Output Resistance: 350 ± 5 Ω

Supply Power Note: 10 Vac/dc (15V maximum)

Zero/Balance Error: ± 2.0% FSO

Burst Pressure Note: 300% of rated pressure

Proof Pressure Note: 200% of rated pressure

Electrical Connection: MIL-26482-I 10-6P

Electrical Output Note: 3 mV/V ± 2%

Process Connection Note: 1⁄8-27 NPT internal

Process Connection Size: 1/8 in

Process Connection Type: NPT Female

Operating Temperature, Max: 168 °C

Operating Temperature, Min: -54 °C

Compensated Temperature, Max: 168 °C

Compensated Temperature, Min: -40 °C

Thermal Effect on Span error, Max: 0.008% rdg/°F

Thermal Effect on Zero error, Max: 0.008% rdg/°F, 0.008% FSO/°F
