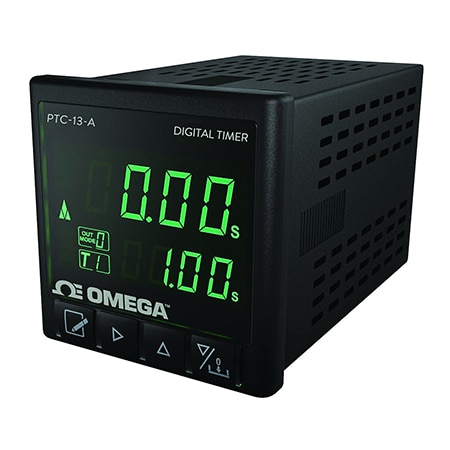

OMEGA PTC-13-LV-A Programmable Dual Digital Timer, Universal Power (Pulse, Dual 4 digit LCD, 7/9 to 24/30 Vac/Vdc)

Weight: 230 g

Accuracy: ± 0.01 %

Frequency: 50 to 60 Hz

Input Type: Pulse

Form factor: 1/16 DIN

Time Ranges: 0.01 to 99.99sec,;0.1 to 999.9sec, 1 to 9999sec,;00:01 to 99:59min, 0.1 to 999.9min,;1 to 9999min, 00:01 to 99:59hrs,;0.1 to 999.9hrs, 1 to 9999hrs;

Display Type: Dual 4 digit LCD

Relay Rating: Electrical: 200,000 operations;Mechanical: 5,000,000 operations

Display Color: Green

Output Detail: Single pole changeover contact and single pole N/O contact

Contact Rating: OP1 10A at 250Vac/30Vdc (resistive);OP2 5A at 250Vac/30Vdc (resistive)

Control Output: 2 SPDT Relay

Supply Voltage: 7/9 to 24/30 Vac/Vdc

Enclosure Ratings: IP20, IP65

Supply Power Note: 90-250 Vac (±10%), Burden: < 5VA

Supply Power Type: AC/DC

Output Configurations: Open collector output, maximum 30Vdc, 100mA

Storage Temperature, Max: 70 °C

Storage Temperature, Min: -25 °C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C
