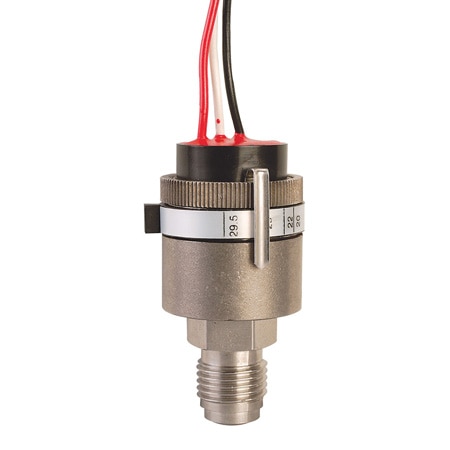

OMEGA PSW-691-N1 OEM Mechanical Pressure Switch with High Purity (Gauge, NPT Male, 1/8 in)

Switch: Single

Weight: 3 oz

Diameter: 1.125 in

Materials: Stainless Steel, Zinc Alloy, Valox

Switch Type: SPDT NO/NC, Selectable

Deadband Type: Fixed

Pressure Type: Gauge

Repeatability: ± 0.6%

Switch Rating: 1 A

Control Output: SPDT Relay

Proof Pressure: Up to 45 psi

Materials, Wetted: 17-4 Stainless Steel, 316 Stainless Steel

Electrical Connection: Pigtail Leads

Wiring/Connector Table: Red = N/C, White = N/O, Black = Common

Process Connection Size: 1/8 in

Process Connection Type: NPT Male

Decreasing Pressure, Max: 28.5 psi

Decreasing Pressure, Min: 0.8 psi

Increasing Pressure, Max: 30 psi

Increasing Pressure, Min: 1.6 psi

Process Temperature, Max: 107 °C

Process Temperature, Min: -54 °C
