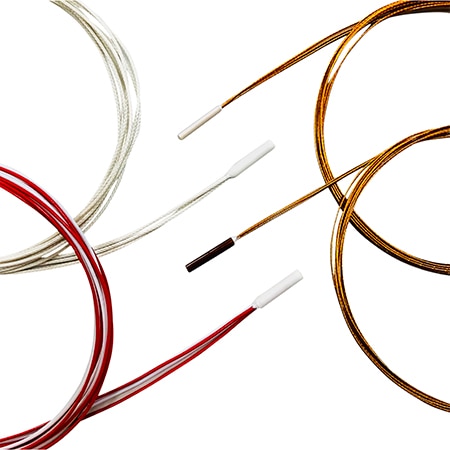

OMEGA PRTDCAP-100A-2-A080-060-K-40 Capsule Platinum RTD Sensor (Class A, 100 Ω, 350 °C)

Accuracy: Class A

Wire Gauge: 26 AWG

Cable Length: 1 m

Accuracy Note: Class A (± 0.15+.002*

Lead Material: Nickle Plated Copper

Sensor Length: 0.6 in

Number of Wires: 2

Sensing Element: Class “A” DIN Platinum Element

Sensor Diameter: 0.08 in

Housing Material: N/A

Nominal Resistance: 100 Ω

Long Term Stability: <0.04% after 1000hr

Recommended Current: N/A

Self Heating Effect: Water [v=0ms], E = 15 mW/K

Response Time, Water: 0.5 sec

Insulation Resistance: >50 MΩ @ 50 Vdc

Temperature Sensor Type: RTD

Process Temperature, Max: 350 °C

Process Temperature, Min: -200 °C

Insulation Resistance Note: Greater than 50 Megohms at 50 Vdc. at 25°C (77°F)
