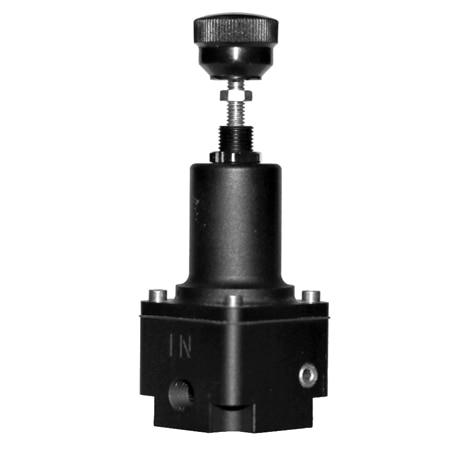

OMEGA PRG98A-60 Air Pressure Regulator (Gauge, 60 psi, NPT Female, 1/16 in)

Width: 1.38 in

Height: 3.88 in

Weight: 2.35 lb

Diameter: 1.38 in

Mounting: Pipe, panel, through body, bracket

Materials: Aluminum,Chromate,Epoxy,Nitrile Rubber,Steel,Brass,Stainless Steel

Sensitivity: 0.25 inH2O

Pressure Type: Gauge

Repeatability: 0.3% of span

Flow Rate Note: 10 SCFM @ 100 psi inlet

Media Compatibility: Air

Output Pressure, Max: 60 psi

Output Pressure, Min: 0 psi

Supply Pressure, Max: 150 psi

Exhaust Capacity, Max: 7 SCFM

Total Air Consumption: 6 SCFM

Process Connection Size: 1/16 in

Process Connection Type: NPT Female

Volumetric Flow Rate, Max: 10 SCFM

Operating Temperature, Max: 71 °C

Operating Temperature, Min: -18 °C

Total Air Consumption Note: 6 SCFH maximum at 150 psi supply

Supply Pressure Sensitivity: 0.6 psi
