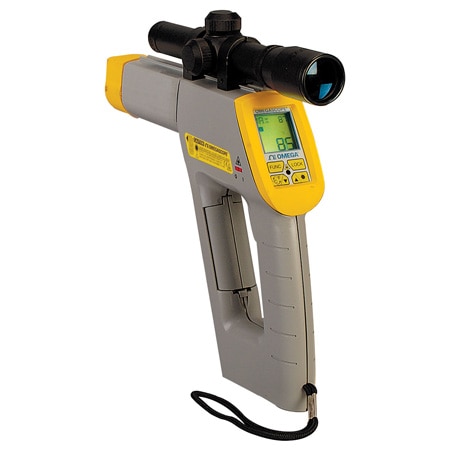

OMEGA OS524E Tripod Mount Handheld IR Thermometer -23 °C to 2482 °C (Average, Differential, Max, Min, Real-time, 110:1, 2482 °C)

Alarm: High and Low

Laser: Dot, Circle

Width: 51 mm

Height: 218 mm

Length: 168 mm

Memory: Stores upto 800 Temperature Points

Weight: 585 g

Accuracy: ± 1 %

Approvals: FDA: Class II, Europiean: Class2

Alarm Note: High and low alarm standard, with audible and visual indication

Resolution: 1°C

Form factor: Pistol Grip

Battery life: up to 14 days with lithium, 80 hr alkaline

Display Note: Backlit LCD; displays current and min or max, differential, average temperatures simultaneously

Display Type: LCD

Tripod Mount: 1⁄4 to 20 UNC

Accuracy Note: ± 1% rdg or 2°C (3.6°F), whichever is greater

Beam Diameter: 5 mm

Field of view: 110:1

Output Detail: 0.5 mV/deg

Output Signal: Millivolt

Repeatability: ± (1% rdg + 1 digit)

Response Time: 100 ms

Data Interface: RS232

Sighting Scope: false

Emissivity Note: 0.10 to 1.00 in 0.01 increments

Emissivity, Max: 1

Emissivity, Min: 0.1

Resolution Note: 1°C or 1°F

Additional Features 1: Standard

Battery Size and Type: Li-ion AA

Laser Wavelength Color: 650 nm

Spectral Response, Max: 2.5 µm

Operating Distance Note: Operating Distance (Laser Circle) - 0.6 to 4.5m ; Operating Distance (Laser Dot) - 0.6 to 12m

Operating Distance, Max: 12 m

Operating Distance, Min: 0.6 m

Process Temperature, Max: 2482 °C

Process Temperature, Min: 538 °C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C

Display Monitoring Function: Average, Differential, Max, Min, Real-time
