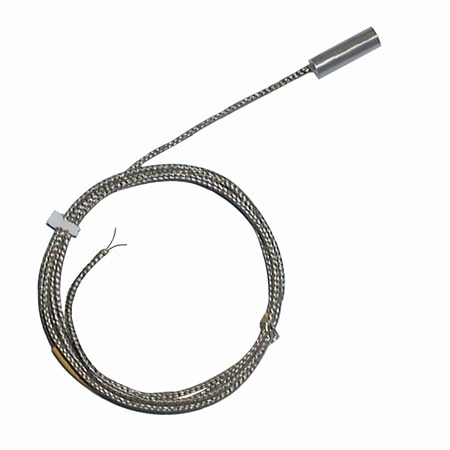

OMEGA OS36SM-K-340F Subminiature IR Sensor with Thermocouple Outputs (1:2, 190 °C)

Weight: 30 g

Display: No

Accuracy: ± 1 %

Impedance: 20 to 60 kΩ

Spot Size: 3 mm

Weight Note: Approx 30 g (1 oz)

Cable Length: 36 in

Laser Output: false

Accuracy Note: 1% under calibration conditions

Field of view: 1:2

Output Detail: Thermocouple Type K

Output Signal: Thermocouple

Response Time: 150 ms

Spot Size Note: 3 mm(0.1") @ zero distance

Emissivity Note: 0.90 Fixed

Emissivity, Max: 0.9

Housing Material: 300 Series Stainless Steel

Cable Length Note: 5 m (36") 30 AWG solid wire with glass braid insulation and tin/copper overbraid

Intrisically Safe: No

Field of View Note: 1:2(distance:spot)

Relative Humidity Note: Non-condensing

Spectral Response, Max: 14 μm

Spectral Response, Min: 6.5 μm

Process Temperature, Max: 190 °C

Process Temperature, Min: 140 °C

Storage Temperature, Max: 85 °C

Storage Temperature, Min: -20 °C

Operating Temperature, Max: 85 °C

Operating Temperature, Min: -20 °C
