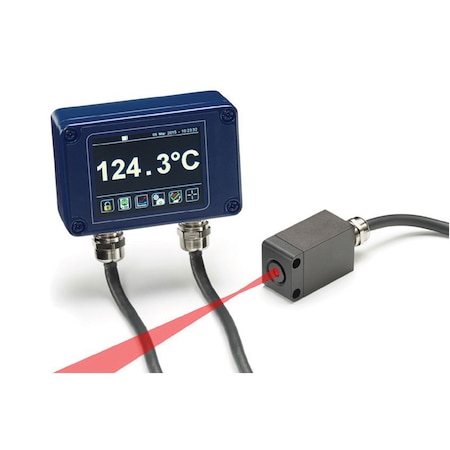

OMEGA OS-PC55-2M-1V High Speed IR Sensor with Small Measured Spot (500 °C, 4 to 20 mA, 0 to 1 Vdc)

Weight: 85 g

Display: No

Weight Note: 85 g (3 oz), without cable

Applications: Industrial and Manufacturing, Materials and Surfaces

Cable Length: 2 m

Laser Output: true

Output Detail: 4 to 20 mA (set by default), 0 to 20 mA, mV/°C or voltage, selectable via optional OS-PC-TSD touch screen interface, 1 open drain alarm output, rated 27 Vdc, 0.2 A*

Output Signal: Current, Voltage

Repeatability: ± 0.5°C

Response Time: 10 ms

Control Output: Open drain

Data Interface: RS232 Modbus

Supply Voltage: 5 to 27 Vdc

Emissivity Note: Adjustable, 0.3 to 1.0, via RS232C or optional touch screen interface

Emissivity, Max: 1

Emissivity, Min: 0.3

Target Sighting: Red LED built-in as standard on all models, shows the position and size of the measurement area; switchable on/off* *LED sighting and alarms

Measurement Area: 5.5 mm

Electrical Output: 4 to 20 mA, 0 to 1 Vdc

Enclosure Ratings: IP67

Intrisically Safe: No

Supply Power Note: 5 to 27 Vdc, 100 mA max

Data Interface Note: RS232C MODBUS® RTU, non-isolated

Measurement Area Note: 5.5 mm spot @ 120 mm

Relative Humidity, Max: 0.85

Relative Humidity, Min: 30%

Temperature Resolution: 0.5 °C

Process Temperature, Max: 500 °C

Process Temperature, Min: 0 °C

Storage Temperature, Max: 70 °C

Storage Temperature, Min: -15 °C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C
