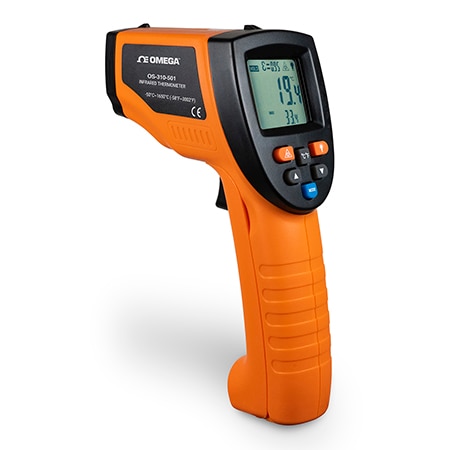

OMEGA OS-310-501 -20 to 1650 °C, 50:1 High Performance Infrared Thermometer (Average, Max, Memory, Min, 50:1, 1650 °C)

Alarm: High and Low

Laser: Dot

Width: 141 mm

Height: 200 mm

Length: 60 mm

Weight: 270 g

Accuracy: ± 1.5 °C (± 2.7 °F)

Form factor: Pistol Grip

Display Type: LCD

Accuracy Note: -50 to 0°C (-58 to 32°F): ± 3°C (± 5°F) 0 to 1650°C (32 to 3002°F): ± 1.5% or 1.5°C (± 2.7°F)

Field of view: 50:1

Repeatability: <1/3

Response Time: <250 ms

Emissivity, Max: 1

Emissivity, Min: 0.1

Repeatability Note: Less than 1/3 of basic error

Battery Size and Type: Alkaline 9V

Relative Humidity Note: 10 -95% RH non-condensed

Relative Humidity, Max: 0.95

Relative Humidity, Min: 10%

Spectral Response, Max: 14 µm

Process Temperature, Max: 1650 °C

Process Temperature, Min: -50 °C

Storage Temperature, Max: 50 °C

Storage Temperature, Min: -20 °C

Operating Temperature, Max: 40 °C

Operating Temperature, Min: 0 °C

Display Monitoring Function: Average, Max, Memory, Min
