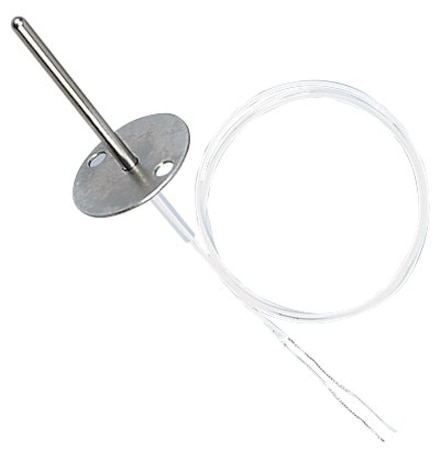

OMEGA ON-960-44007 Flange Mounted Non-Linear Thermistor Probes with Lead Wire (± 0.2 °C (± 0.36 °F), Stripped Leads, 5000 Ω, 100 °C)

Accuracy: ± 0.2 °C (± 0.36 °F)

Insulation: PFA

Probe Type: Flange Mounted Non-Linear Thermistor Probes with Lead Wire

Wire Gauge: 28 AWG

Cable Length: 12 in

Probe Length: 1.5 in

Probe Diameter: 0.125 in

Flange Diameter: 1 in

Flange Material: 300 Stainless Steel

Insulation Note: 28 AWG Single Strand PFA Insulated Wire with Stripped Leads Standard

Sheath Material: 304 Stainless Steel

Nominal Resistance: 5000 Ω

Electrical Connection: Stripped Leads

Temperature Probe Style: Immersion Probe

Temperature Sensor Type: Thermistor

Process Temperature, Max: 100 °C

Process Temperature, Min: 0 °C

Thermistor Resistance Temperature, Max: 70 °C

Thermistor Resistance Temperature, Min: 0 °C

Datasheet
